The CA-IS1311 devices are high-precision reinforced isolated amplifiers and optimized for voltage sensing. Low offset and gain error and drift guarantee that measuring accuracy is maintained over the entire operating temperature range.

The CA-IS1311 devices utilize silicon oxide (SiO2) isolation barriers and support up to 5-kVRMS galvanic isolation per UL 1577. This technology separates high- and low-voltage domain to protect lower-voltage parts from damage and provides low emissions as well as strong anti-interference capability from magnetic changes. The high common-mode transient immunity (CMTI) means that the CA-IS1311 devices transmit correct signals through isolation barriers and are suitable for industrial motor controls and drives which require high-voltage and high-power switching. The internal missing or undervoltage lockout (UVLO) of highside supply voltage detection functions contribute to fault diagnostics and system safety.

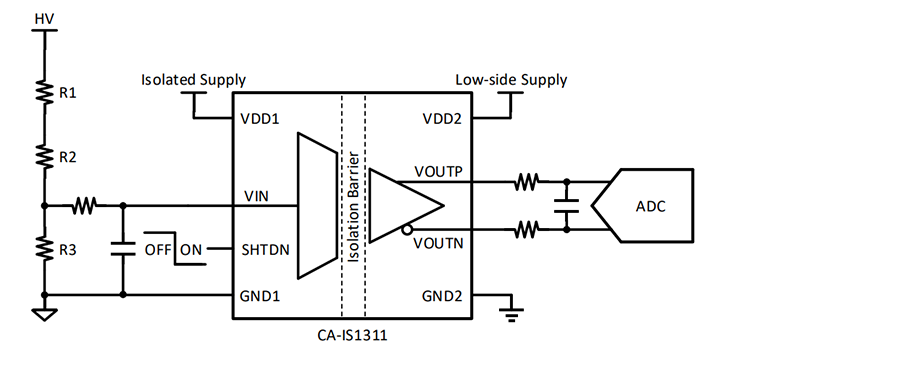

The input of CA-IS1311 is high-impedance, making it suitable for applications where the measured signal sources have high output resistance (such as high-voltage resistive dividers). The CA-IS1311 devices have shutdown mode, which could shut down the high-side circuit by pulling up SHTDN pin to save power.

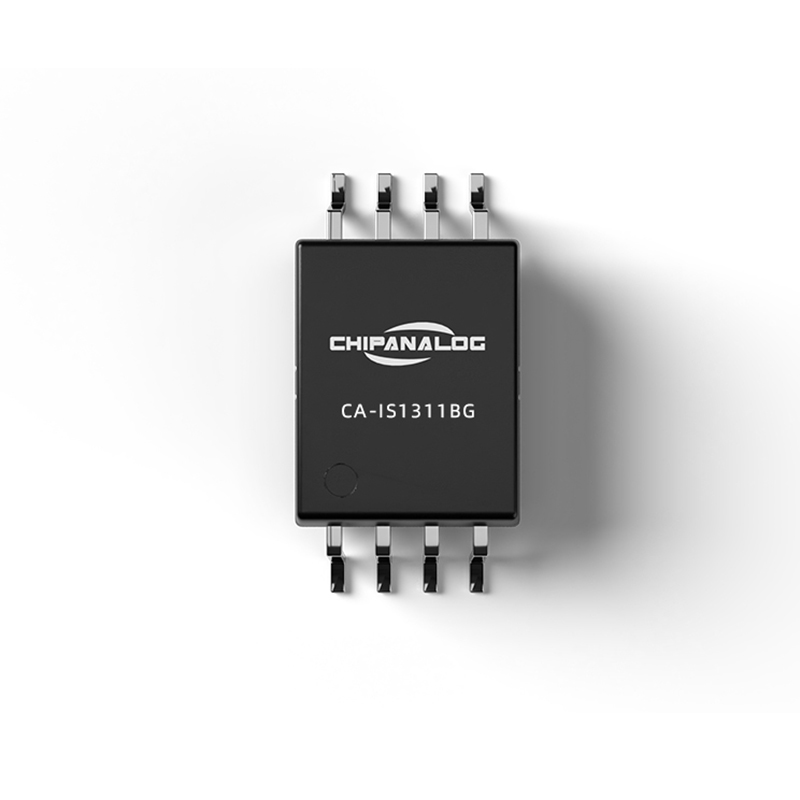

The CA-IS1311 devices are packaged in wide body, 8-pin SOIC packages and specified over the extended industrial temperature range of –40°C to 125°C.
